HJ D150 Multi-purpose Heavy-duty UAV
$18,999.00

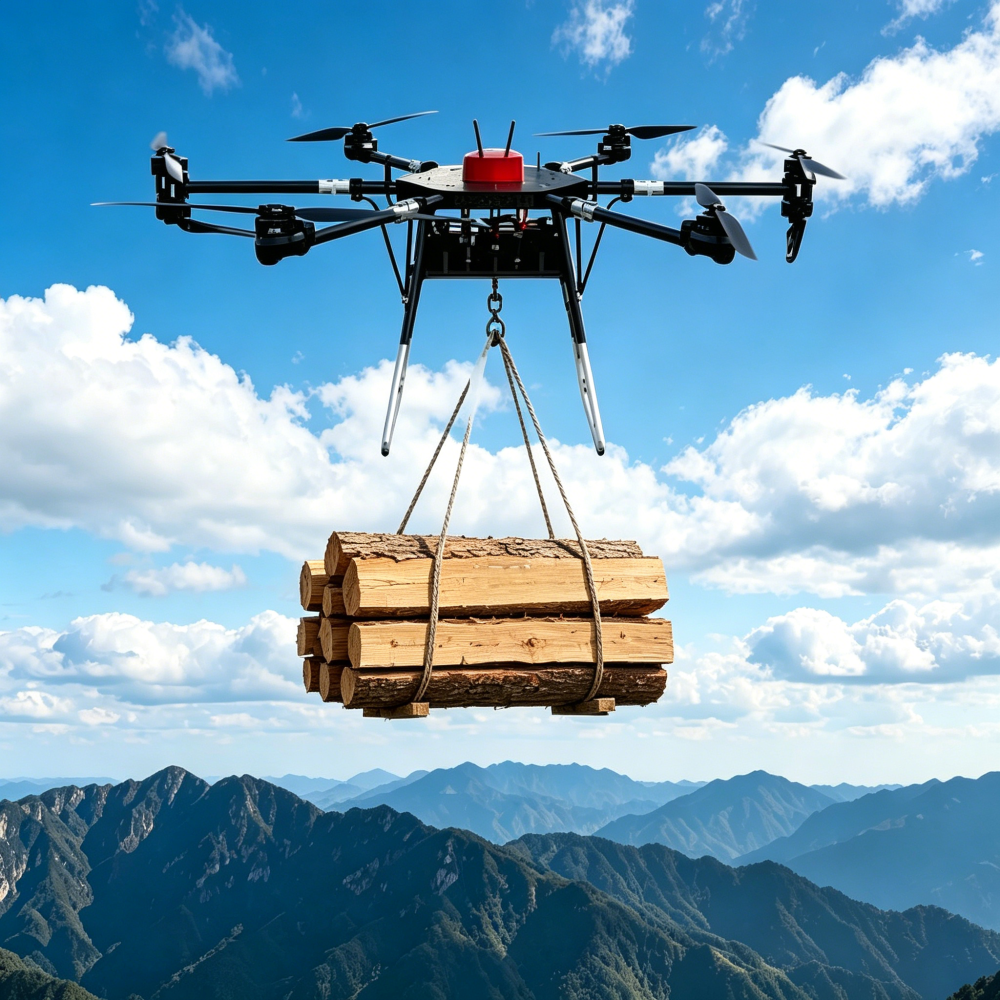

This product is a multi‑purpose heavy‑lift unmanned aerial platform. The airframe is constructed from high‑strength composite carbon fiber, achieving an empty weight of only 73 kg (135 kg with battery) while delivering a maximum takeoff weight of 360 kg and a recommended payload of 150 kg (up to 200 kg with reduced endurance). This demonstrates outstanding load efficiency and structural reliability.
THE BENEFITS OF CHOOSING US
描述
Product accessories include the following:
-
Integrated video & data link handheld ground station ×1 set (standard)
-
HD camera ×1 set (standard)
-
30x optical zoom camera ×1 unit (standard)
-
30x dual-band infrared gimbal with recognition and tracking ×1 set (optional)
-
High-precision positioning and orientation RTK module ×1 set (standard)
-
58-inch propeller blades ×4 pairs (standard)
-
Intelligent descent bidirectional winch ×1 set (optional)
-
High-altitude operation rope ×1 set (standard for lifting)
-
Laser-assisted delivery sight ×1 set (optional)
-
Lifting and release hook ×1 set (optional)
-
Battery ×4 units (standard)
-
Charger ×1 set (standard)
-
Maintenance tool kit ×1 set (standard)
-
Drone software control center ×1 set (standard)
-
Wooden case ×1 set (standard)
-
Explosion-proof aviation case ×1 unit (optional)
Frame Material: High-strength composite carbon fiber
Wheelbase (unfolded): 3118 mm
Folded size: 1580 mm × 1680 mm × 1200 mm
Aircraft weight (including battery): 135 kg
Empty weight (without payload): 73 kg
Maximum takeoff weight: 360 kg
Maximum safe lifting load: —
Rated lifting payload:
- 200 kg (reduced endurance)
- 150 kg (recommended)
Maximum flight speed:
- S mode: 21 m/s
- M mode: 16 m/s
- P mode: 12 m/s
Flight endurance (from full load to empty load):
- With 200 kg max payload: ≥12–65 min
- With 150 kg rated payload: ≥20–65 min
- With 100 kg economy payload: ≥28–65 min
Battery capacity (Wh): 18 kWh
Onboard avionics system: Three‑axis redundant system.
Hovering accuracy: 0.1 m
Maximum wind resistance: ≥ Level 6 (instantaneous up to Level 8)
Emergency obstacle avoidance capability: Radar + Vision + Electronic fence
Integrated video & data link range: 30 km (open area, no interference)
Gimbal DOF: 360°
Camera resolution: 1080P
Operational cruising altitude: 20 – 1200 m
Multi‑purpose interfaces: Firefighting / cargo transport / lifting support
Operating temperature range: -20°C to +65°C
Water & dust ingress protection rating: IP68 (suitable for light rain)
其他信息
| Country of Origin | China |
|---|
Quick Comparison
| HJ D150 Multi-purpose Heavy-duty UAV remove | HJ D100 Multi-purpose Heavy-duty UAV remove | HJ D300 Multi-purpose Heavy-duty UAV remove | HJ D200 Multi-purpose Heavy-duty UAV remove | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Name | HJ D150 Multi-purpose Heavy-duty UAV remove | HJ D100 Multi-purpose Heavy-duty UAV remove | HJ D300 Multi-purpose Heavy-duty UAV remove | HJ D200 Multi-purpose Heavy-duty UAV remove | ||||||||
| Image |  |  |  |  | ||||||||
| SKU | HJ-D150-CN | HJ-D100-CN | HJ-D300-CN | HJ-D200-CN | ||||||||
| Rating | ||||||||||||
| Price | $18,999.00 | $14,999.00 | $44,999.00 | $29,999.00 | ||||||||
| Stock | ||||||||||||
| Weight | N/A | N/A | N/A | N/A | ||||||||
| Dimensions | N/A | N/A | N/A | N/A | ||||||||
| Additional information |
|
|
|
| ||||||||
| Description | This product is a multi‑purpose heavy‑lift unmanned aerial platform. The airframe is constructed from high‑strength composite carbon fiber, achieving an empty weight of only 73 kg (135 kg with battery) while delivering a maximum takeoff weight of 360 kg and a recommended payload of 150 kg (up to 200 kg with reduced endurance). This demonstrates outstanding load efficiency and structural reliability. | This product is a multi‑purpose heavy‑lift unmanned aerial platform. The airframe is constructed from high‑strength composite carbon fiber, achieving an empty weight of only 55 kg (100 kg with battery included) while delivering a maximum takeoff weight of 280 kg and a maximum payload of 140 kg (100 kg recommended). This demonstrates outstanding load efficiency and structural reliability. | This product is a multi‑purpose heavy‑duty unmanned aerial platform. The airframe is primarily made of composite carbon fiber and aviation aluminum, achieving an extremely low empty weight (only 245 kg including battery) while delivering a maximum takeoff weight of up to 640 kg and an ultimate payload capacity of 390 kg, demonstrating outstanding load efficiency and structural reliability. | This product is a multi‑purpose heavy‑lift unmanned aerial platform. The airframe is made of high‑strength composite carbon fiber, with an empty weight of only 90 kg (165 kg including battery), a maximum takeoff weight of 540 kg, and a recommended payload of 200 kg (260 kg max). It combines exceptional load efficiency with structural reliability, making it suitable for demanding missions such as firefighting, cargo transport, and lifting operations. | ||||||||
