HJ N20 Multifunctional Plant Protection UAV
$3,999.00
The Hangjie N20 is a lightweight yet powerful agricultural drone featuring a 20L tank, 45kg maximum takeoff weight, 13.3 ha/h spraying efficiency, dual IMU/GPS flight control, millimeter-wave radar obstacle avoidance, and IP67 waterproof rating for reliable operation in various field conditions.
THE BENEFITS OF CHOOSING US
On all order
描述
Product Accessories Include the Following:
-
Integrated video & data remote controller — 1 set (standard)
-
HD camera — 1 set (standard)
-
High-precision positioning & orientation RTK — 1 set (standard)
-
Millimeter-wave radar — 1 set (standard)
-
14S smart battery — 1 set (standard)
-
Smart charger — 1 set (standard)
-
Dual-channel impeller flow meter — 1 set (standard)
-
Impeller pump — 1 set (standard)
-
Centrifugal spray nozzles — 2 pcs (standard)
-
Spreading system — 1 set (optional)
-
Maintenance tool kit — 1 set (standard)
-
Wooden case — 1 set (standard)
-
Explosion-proof aviation case — 1 pc (optional)
Frame Material: Composite carbon fiber / aviation aluminum
Wheelbase: 1480 mm
Folded size: 610 × 1010 × 580 mm
Aircraft weight: 25 kg
Maximum takeoff weight: 45 kg
Tank capacity: 20 L
Flight speed: 5–10 m/s
Effective endurance: 10–20 min (depending on load)
Battery capacity: 14s 20000 mAh
Flight control system: Dual IMU, dual GPS
Spray nozzles: 2, spray width: 6–10 m
Spray flow rate: 8 L/min
Operating efficiency: 13.3 ha/h (200 mu/h)
Remote control range: 3000 m (open area)
Obstacle avoidance mode: Millimeter-wave radar
Flight modes: Attitude / GPS / Autonomous flight
Operating altitude: 0–5000 m
Airframe service life: 60000 h
Waterproof rating: IP67 (washable)
Visual support: HD 1080p camera
其他信息
| Country of Origin | China |
|---|
Quick Comparison

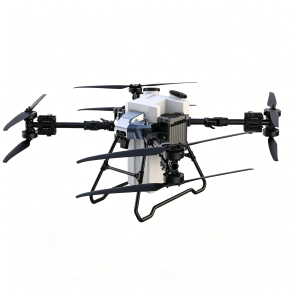

| HJ N20 Multifunctional Plant Protection UAV remove | HJ N120 Multi-functional Plant Protection UAV remove | HJ N30 Multifunctional Plant Protection UAV remove | HJ N50 Multifunctional Plant Protection UAV remove | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Name | HJ N20 Multifunctional Plant Protection UAV remove | HJ N120 Multi-functional Plant Protection UAV remove | HJ N30 Multifunctional Plant Protection UAV remove | HJ N50 Multifunctional Plant Protection UAV remove | ||||||||
| Image |  |  |  |  | ||||||||
| SKU | HJ-N20-CN | HJ-N120-CN | HJ-N30-CN | HJ-N50-CN | ||||||||
| Rating | ||||||||||||
| Price | $3,999.00 | $10,499.00 | $4,499.00 | $7,499.00 | ||||||||
| Stock | ||||||||||||
| Weight | N/A | N/A | N/A | N/A | ||||||||
| Dimensions | N/A | N/A | N/A | N/A | ||||||||
| Additional information |
|
|
|
| ||||||||
| Description | The Hangjie N20 is a lightweight yet powerful agricultural drone featuring a 20L tank, 45kg maximum takeoff weight, 13.3 ha/h spraying efficiency, dual IMU/GPS flight control, millimeter-wave radar obstacle avoidance, and IP67 waterproof rating for reliable operation in various field conditions. | Hangjie N120 Multi-functional Plant Protection UAV: 120L large load capacity, high efficiency of 33.3 ha/hour, IP67 waterproof, standard RTK & millimeter-wave radar obstacle avoidance, supports autonomous flight. | The Hangjie N30 is a multifunctional plant protection UAV featuring a composite carbon fiber and aviation aluminum airframe, 30L tank capacity, 23.3 ha/h operating efficiency, and IP67 waterproof rating for reliable agricultural spraying. | The Hangjie N50 is a multi-functional plant protection UAV with a 50L tank, 99kg maximum takeoff weight, 33.3 ha/h spraying efficiency, dual IMU/GPS flight control, millimeter-wave radar obstacle avoidance, and IP67 waterproof rating for reliable agricultural operations. | ||||||||
